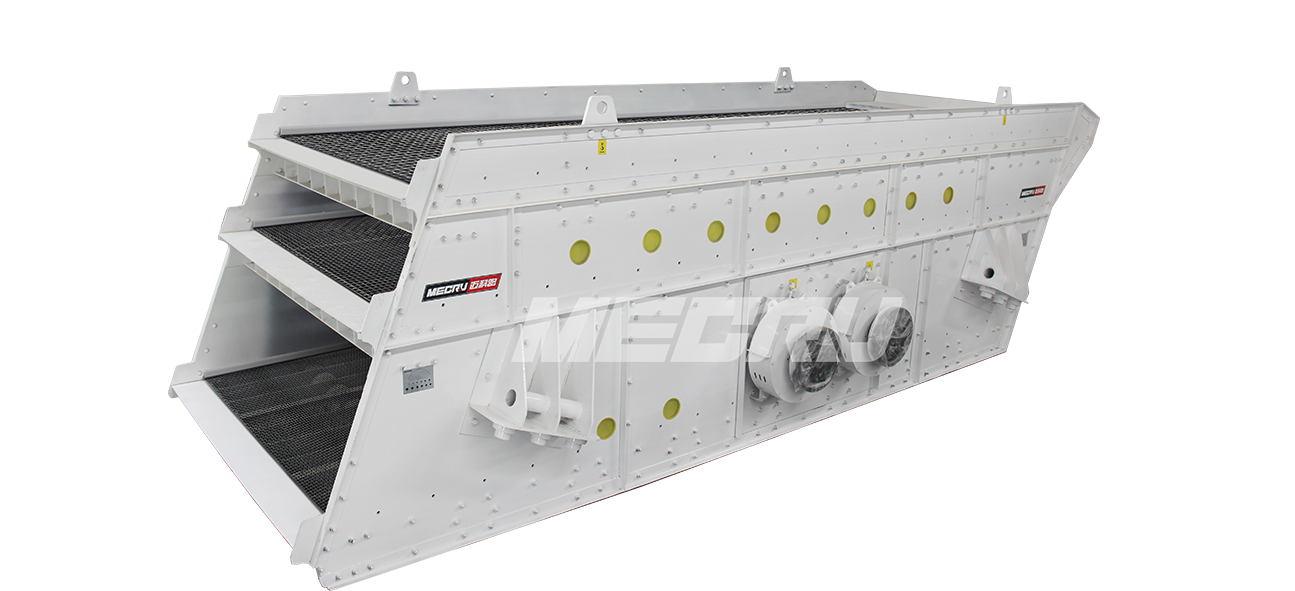

Inclined Vibrating Screen

≤200mm

Feeding size

35-1000t/h

Capacity

Applicable materials: granite, basalt, diabase, shale, quartz stone, river pebble, limestone, etc.

High-efficiency Screening

Get a Quote

Product profile

Inclined vibrating screen is a widely used screening equipment in the field of mine crushing. This kind of equipment is also called a circular vibrating screen because the trajectory of the screen box is circular or elliptical. There are many types of inclined vibrating screens in Mecru, and the screen surface of the screen machine has two types of single-layer and double-layer structures. It is widely used in coal, chemical, mining, building materials and other industries for the drying and wet classification of granular and small loose solid materials.

Product Advantages

Equipment maintenance is simple and convenient, and the operating efficiency of the whole machine is significantly improved.

The screening efficiency is higher, the processing capacity is larger, the service cycle and the service life of the whole machine are longer.

The eccentric block adjusts the amplitude, the material flow line is long, and the screening specifications are many.

The structure of the screen machine tends to be simplified, which is conducive to improving the manufacturing process level and assembly accuracy of the equipment.

Adopting vibration motor as excitation source, easy to use and maintain.

Technical Parameters

Model	Screen		Feeding Size(mm)	Capacity(t/h)	Power(kw)
	Deck	Mesh area(m^2)
2YK1236	2	4.3	≤200	35-150	11
2YK1548	2	7.2	≤200	50-300	15
3YK1548	3
2YK1860	2	10.8	≤200	80-500	22
3YK1860	3				22
4YK1860	4				30
2YK2160	2	12.6	≤200	100-580	30
3YK2160	3				30
4YK2160	4				37
2YK2460	2	14.4	≤200	150-650	30
3YK2460	3				37
4YK2460	4				45
2YK2675	2	19.5	≤200	160-850	45
3YK2675	3				55
2YK3075	2	22.5	≤200	500-1000	37x2
3YK3075	3				45x2

Note：Any change of technical data shall not be advised additionally.

Application Areas

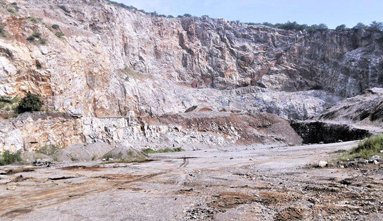

Mines and Quarries
Coal Preparation
Beneficiation

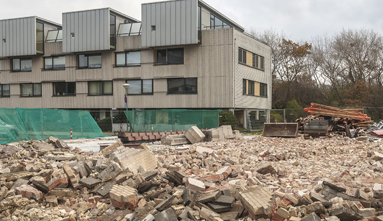

Building Construction

Inclined Vibrating Screen

Work Principle

The eccentric block of the exciter is rotated at high speed by triangle belt. The running eccentric block generates a great centrifugal force, which stimulates the screen box to produce a circular motion with a certain amplitude. The particles smaller than the mesh size are passed through the sieve to achieve classification.

Customer Case

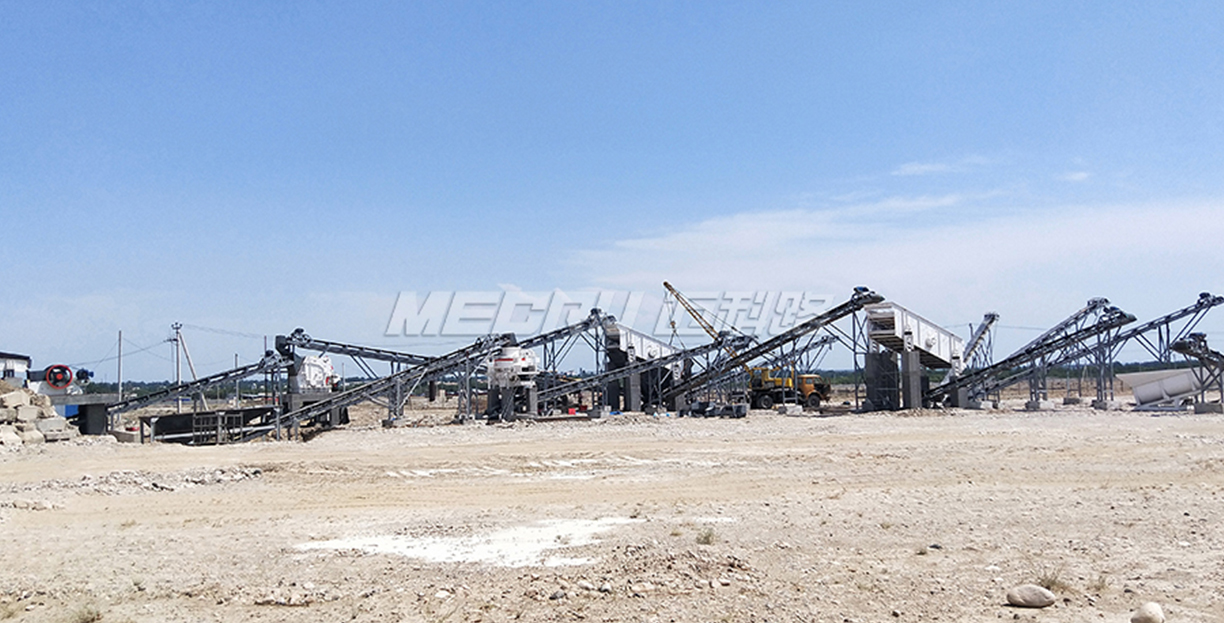

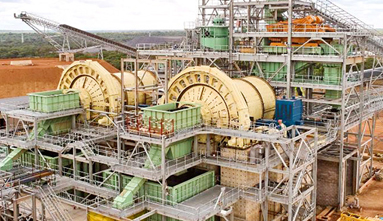

Australian iron ore beneficiation case

The Australian customer has been cooperating with Mecru Heavy Industry for a long time, and this time he wants to add a ...

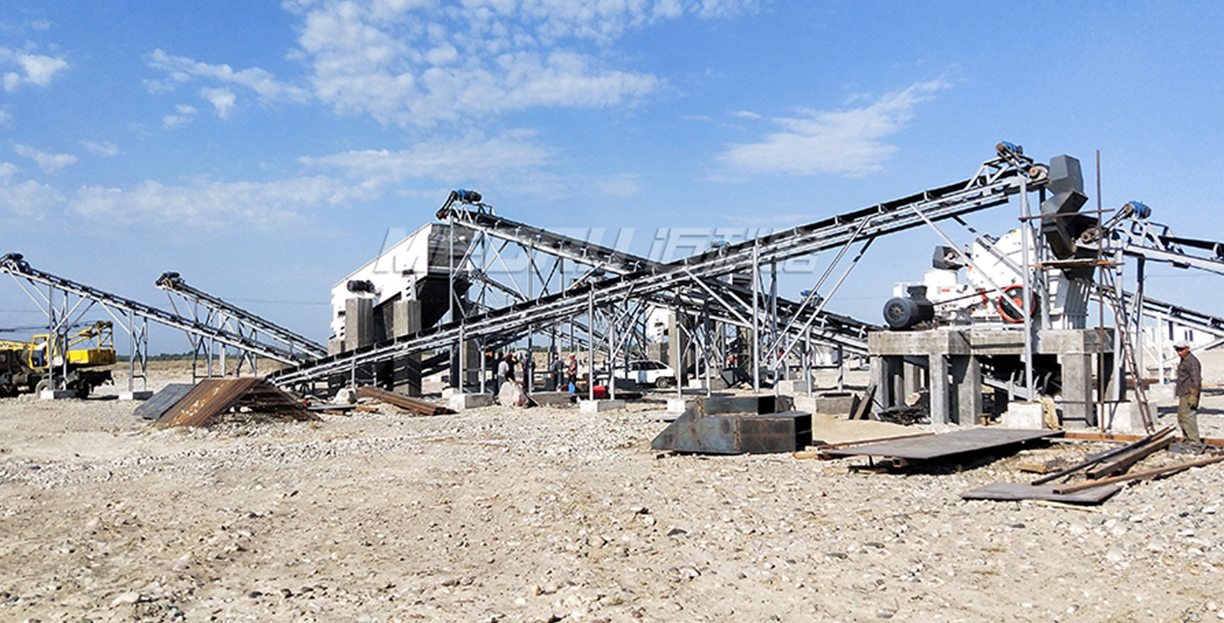

Case of Pakistan Manganese Ore Magnetic Separation...

The customer's manganese ore is mainly produced by rhodochrosite and calcium rhodochrosite, followed by manganese c...

Case of Pakistan Manganese Ore Magnetic Separation Production Line
