Vibrating Feeder


Feeding size



Applicable materials: river pebbles, granite, basalt, quartz stone, iron ore, limestone, etc.
Uniform Feeding and Easy Maintenance

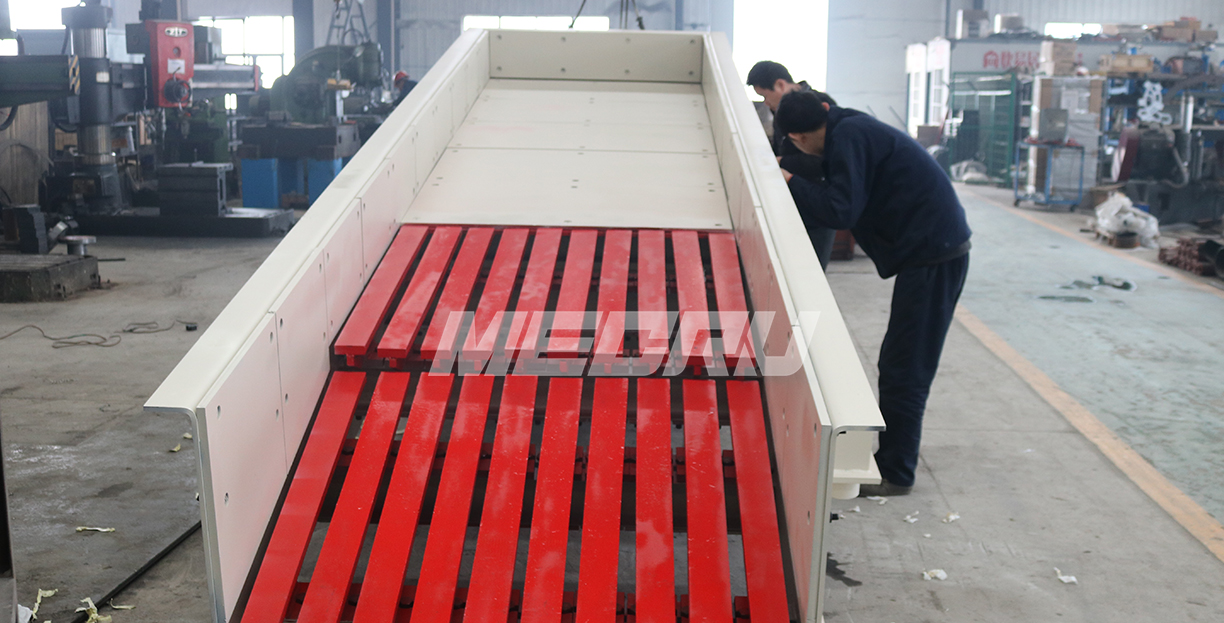

Vibrating Feeder

Product profile

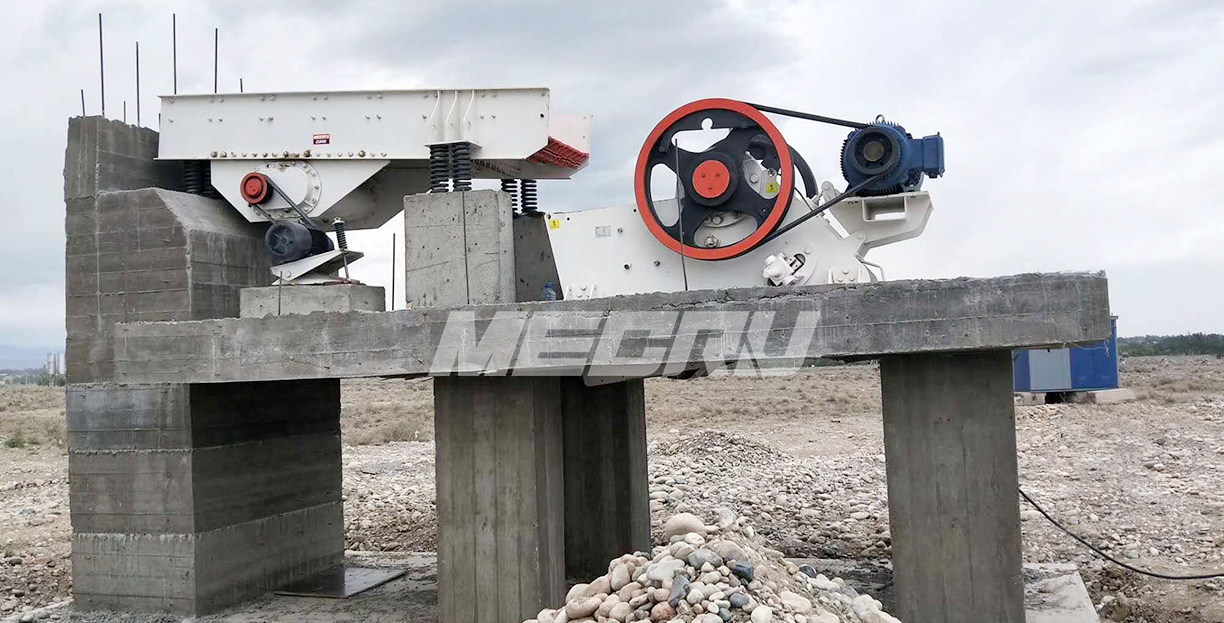

The vibrating feeder is arranged in front of the crusher, and can feed the bulk and granular materials from the storage bin evenly, regularly and continuously to the receiving device to ensure the quality of the crushing. In the sand and gravel production line, it can continuously and uniformly feed the crushing machinery and coarsely screen the materials. It is widely used in the crushing and screening equipment in industries such as metallurgy, coal mining, mineral processing, building materials, chemical industry, and abrasives.

Mouse drag product 360°rotation

Product Advantages

Technical Parameters

modelMax feeder size(mm)capacity(t/h)Motor modelMotor power(kw)weight(t)Hopper size (mm)

Note:Any change of technical data shall not be advised additionally.

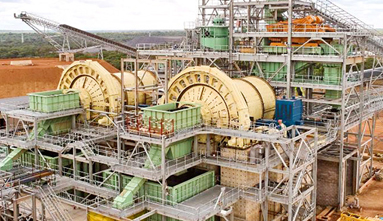

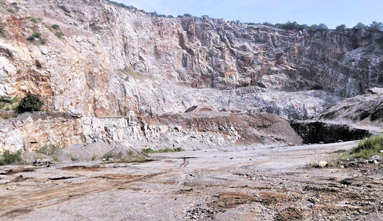

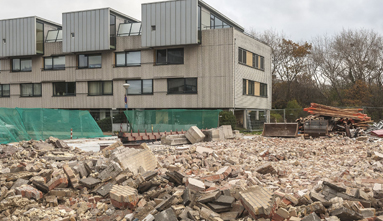

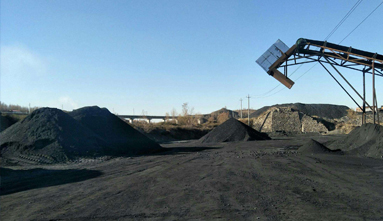

Application Areas

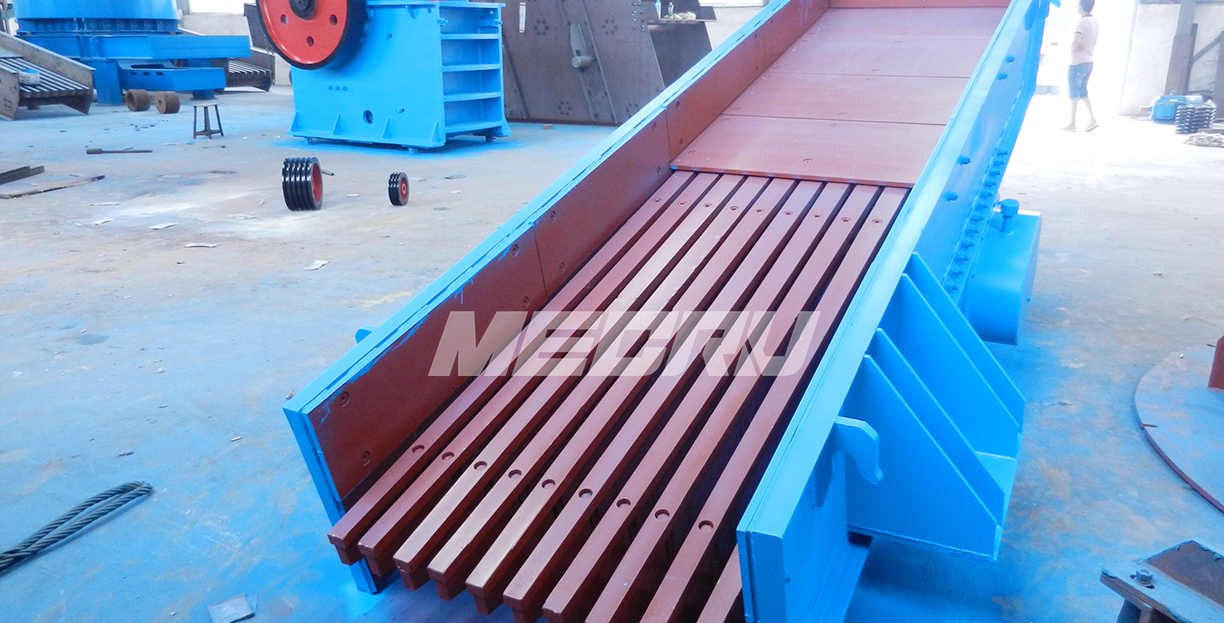

Vibrating Feeder

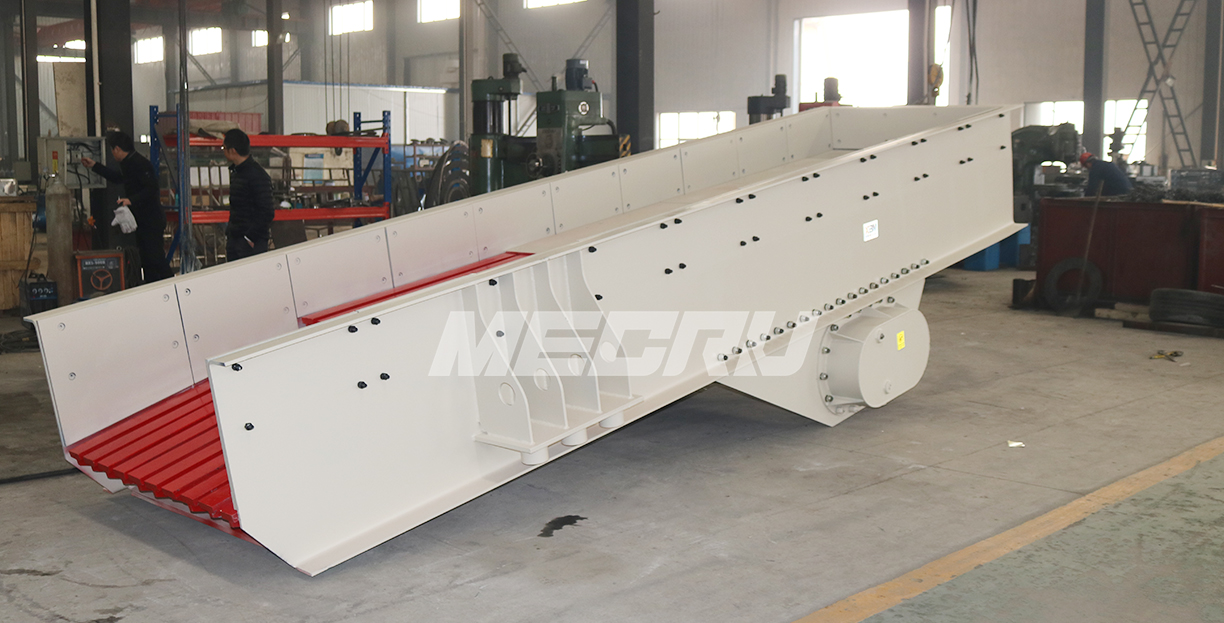

Vibrating Feeder

Work Principle

The vibrating feeder is composed of a feed trough body, an exciter, a spring support, and a transmission device. The vibration source of the tank's vibration feed is the exciter. The exciter is composed of two eccentric shafts (active and passive) and the gear pair. The motor drives the active shaft through the V-belt, and then the gear on the active shaft engages the passive shaft When it rotates, the active and passive shafts rotate in opposite directions at the same time, so that the tank body vibrates, so that the material continuously flows and achieves the purpose of conveying the material.

Customer Case

Australian iron ore beneficiation case
Australian iron ore beneficiation case

The Australian customer has been cooperating with Mecru Heavy Industry for a long time, and this time he wants to add a ...

Read more
Case of Pakistan Manganese Ore Magnetic Separation...

The customer's manganese ore is mainly produced by rhodochrosite and calcium rhodochrosite, followed by manganese c...

Read more
Case of Pakistan Manganese Ore Magnetic Separation Production Line
