HPG Multi-cylinder Hydraulic Cone Crusher

≤450mm

Feeding size

45-1200t/h

Capacity

Applicable materials: quartz, river pebble, calcite, dolomite, granite, basalt, iron ore, limestone, diabase, bluestone, etc.
Low Energy Consumption, Long Service Life

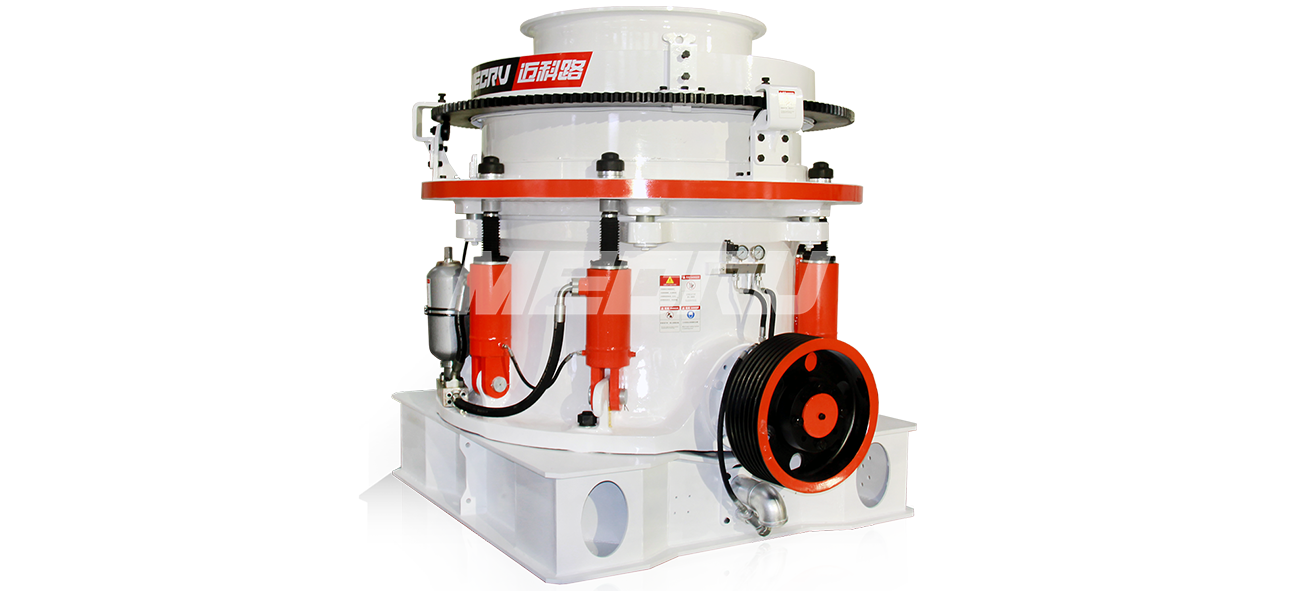

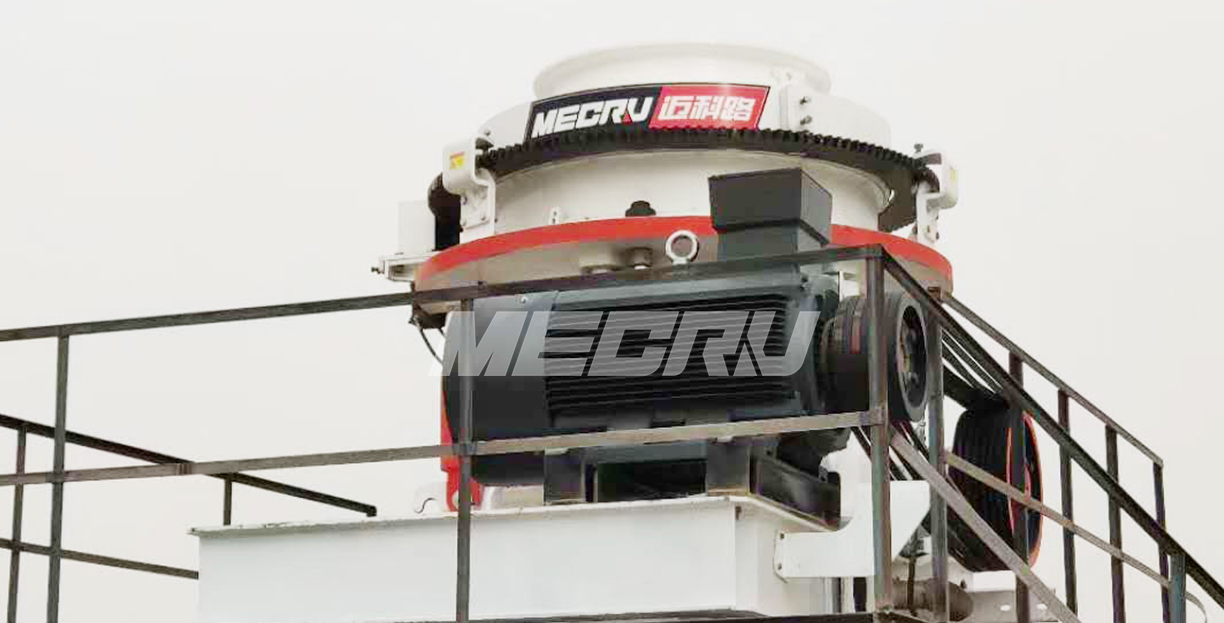

HPG Multi-cylinder Hydraulic Cone Crusher

Product profile

Mecru HPG multi-cylinder hydraulic cone crusher is mainly used for medium and fine crushing in metal mines and sand and gravel aggregate processing. The safety device, adjustment device and locking device of the cone crusher are all driven by hydraulic pressure. Therefore, it has the unique advantages of convenient adjustment of the discharge opening and easy removal of the blocked non-broken material in the crushing cavity.

Mouse drag product 360°rotation

Product Advantages

Technical Parameters

modelCavityOpen side feeding size(mm)Closed side feeding size(mm)Min outlet size(mm)Capacity(t/h)Power(kw)
HPG100C1(Extra Coarse)1751401945-10090
C2(Coarse)12510513
M(Middle)1007010
F1(Fine)71509
F2(Extra Fine)33206
HPG200C2(Coarse)2351901965-250160
M(Middle)17112016
F1(Fine)1509513
F2(Extra Fine)116708
HPG300C1(Extra Coarse)2652302585-440220
C2(Coarse)24021020
M(Middle)19015015
F1(Fine)14510511
F2(Extra Fine)120808
HPG400C1(Extra Coarse )36029030135-625315
C2(Coarse)31025025
M(Middle)26019620
F1(Fine)18211013
F2(Extra Fine)1359010
HPG500C1(Extra Coarse)37033038200-790400
C2(Coarse)32029028
M(Middle)24521022
F1(Fine)18013013
F2(Extra Fine)1509510
HPG800C1(Extra Coarse)45035238265-1200630
C2(Coarse)37329832
M(Middle)34027525
F1(Fine)28023016
F2(Coarse Fine)23515010

Note:Any change of technical data shall not be advised additionally.

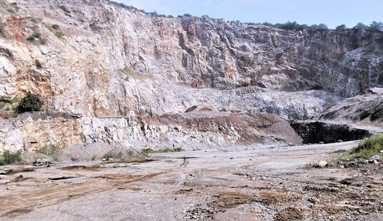

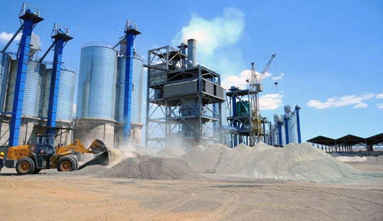

Application Areas

Prev
Next

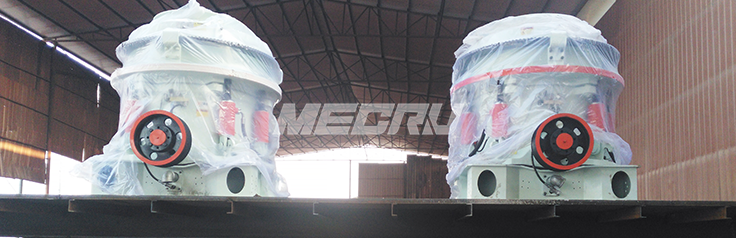

HPG Multi-cylinder Hydraulic Cone Crusher

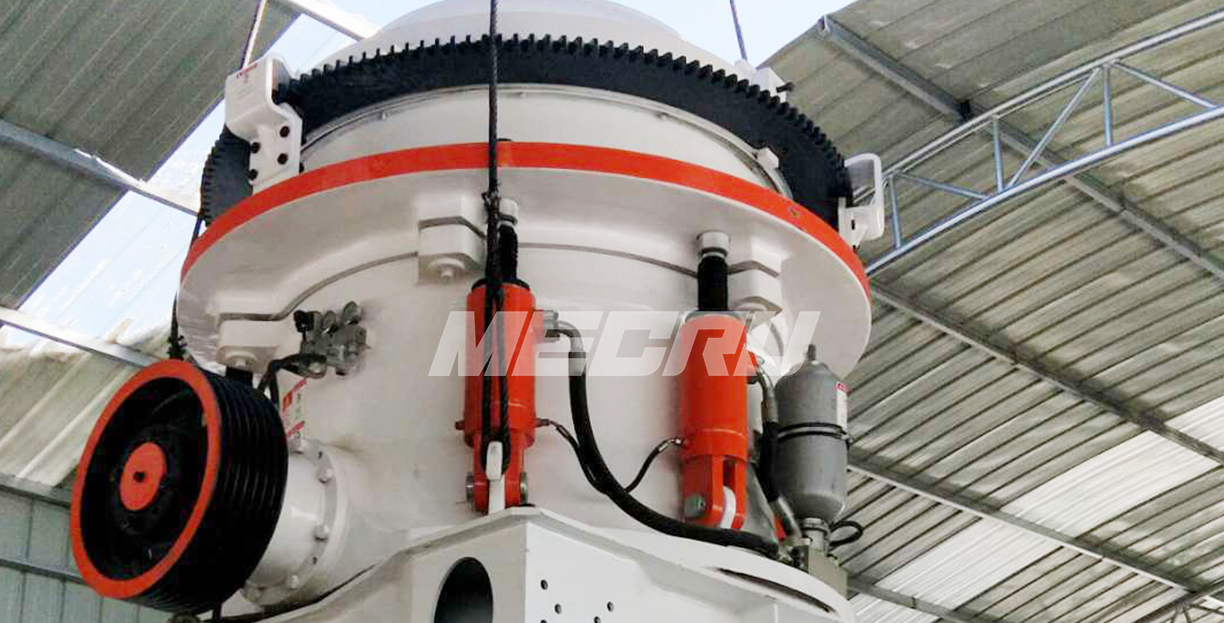

HPG Multi-cylinder Hydraulic Cone Crusher

Work Principle

The cone breaking cone makes a swinging motion under the action of the eccentric sleeve, driving the crushing wall to squeeze and rub the material between the wall and the mortar wall. According to the lamination theory, the material is subjected to forces in multiple directions and according to its own texture It is crushed and polished to form stable stone particles. It falls from the gap between the swing wall of the crushing wall if meets the discharge requirements. The remaining materials continue to be crushed until the discharge requirements are met.

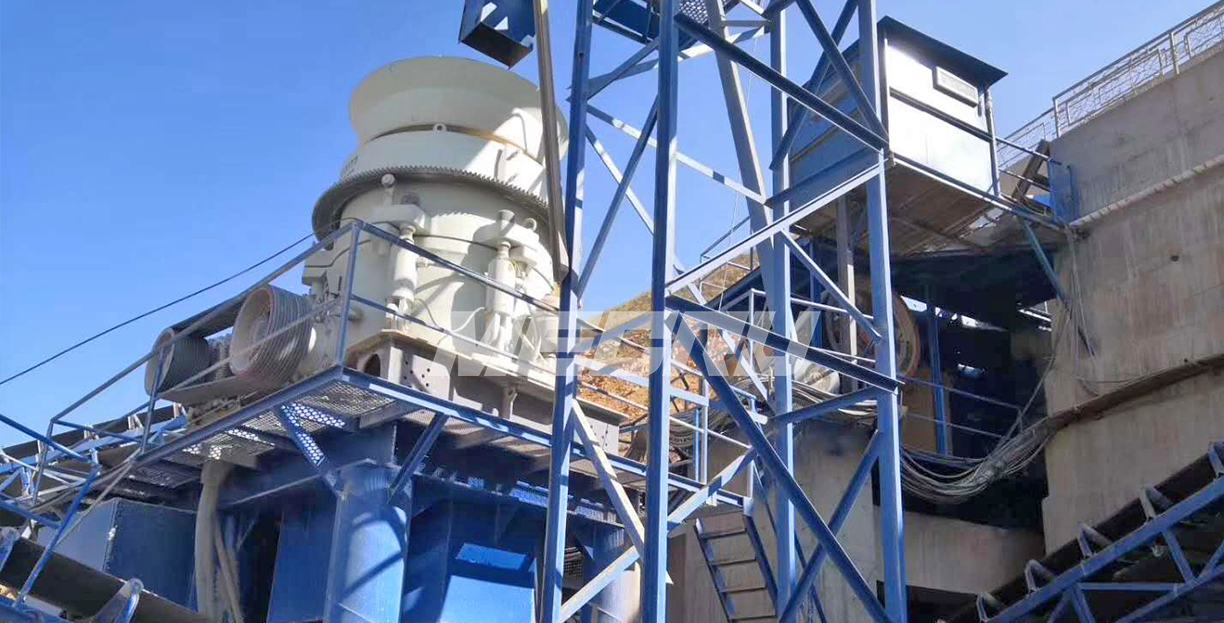

Customer Case

Liaoning iron ore crushing
Liaoning iron ore crushing

Liaoning is rich in iron ore resources, and as China’s heavy industry base, the demand for iron ore has always been hug...

Read more
Anhui Liu An 250tph river pebble sand-making proje...

River pebbles is a common mechanism sand project. Because the acquisition of river pebble raw materials is relatively si...

Read more
Anhui Liu An 250tph river pebble sand-making project
