Gyratory Crusher

≤1400mm

Feeding size

2000-8880t/h

Capacity

Applicable materials: construction sand, iron ore, sandstone, gypsum, coal gangue, lump coal and other medium hard ore stone.

Large Throughput

Get a Quote

Product profile

The gyratory crusher has a huge output and is often used for coarse crushing operations of large enterprises or large production lines. It can crush the raw material ore produced by drilling and blasting to a suitable particle size for subsequent crushing process or beneficiation process. It is the key to the entire process. The link is also the key equipment for the transition between the stope and the subsequent processing system.

Product Advantages

The thoughtfully crushing cavity design of gyratory crusher ensuring stronger production capacity, larger feed particle size and longer liner life.

It adopts the design of large inclination angle and long crushing surface, combined with the optimized design of stroke and speed, so that the crusher has a strong crushing capacity, which is suitable for the requirements of various coarse crushing operations.

Ultra-heavy frame, large-diameter integral spindle and high-precision cast bearings. The whole machine has higher strength and longer service life, ensuring safe and reliable continuous high-strength production.

Adopting automatic control system and configuring various sensors such as lubricating pressure, lubricating temperature, bearing temperature, rotating speed, spindle position, etc.. PLC and touch screen could realize detection and control and real-time display of every link of the equipment.

Technical Parameters

Model	Feeding Chute Size(mm)	Rotational Speed(r/min)	Power(kw)	Output size & Capacity(mm/t)
Model	Feeding Chute Size(mm)	Rotational Speed(r/min)	Power(kw)	140mm	150mm	165mm	175mm	190mm	200mm	215mm	230mm	250mm
MCR42-65	1065	600	375	2000	2320	2500	2860
MCR50-65	1270	600	375		2380	2770	2920
MCR54-75	1370	600	450		2870	2970	3130	3320	3470
MCR62-75	1575	600	450		2880	3600	3810	4200	4220
MCR60-89	1525	600	600			4180	4530	5070	5280	5520	5800
MCR60-110	1525	600	1200				5520	6930	7320	7560	8270	8880

Note：Any change of technical data shall not be advised additionally.

Application Areas

Mines and Quarries
Cement Production
Building Construction
Road Construction

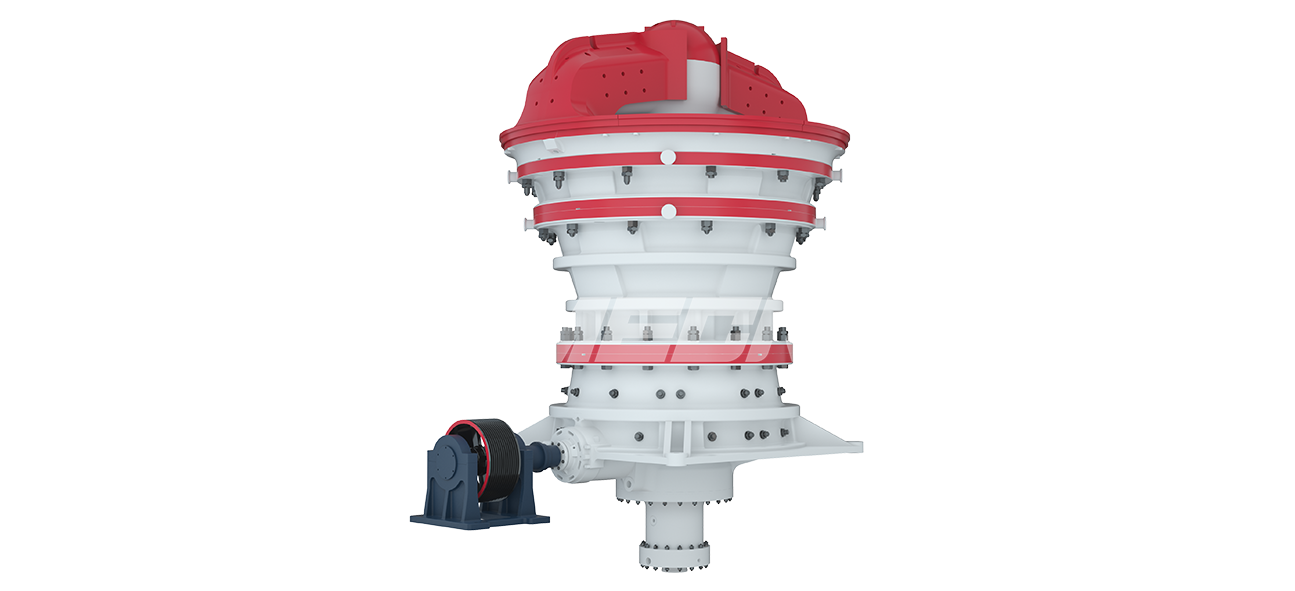

Gyratory Crusher

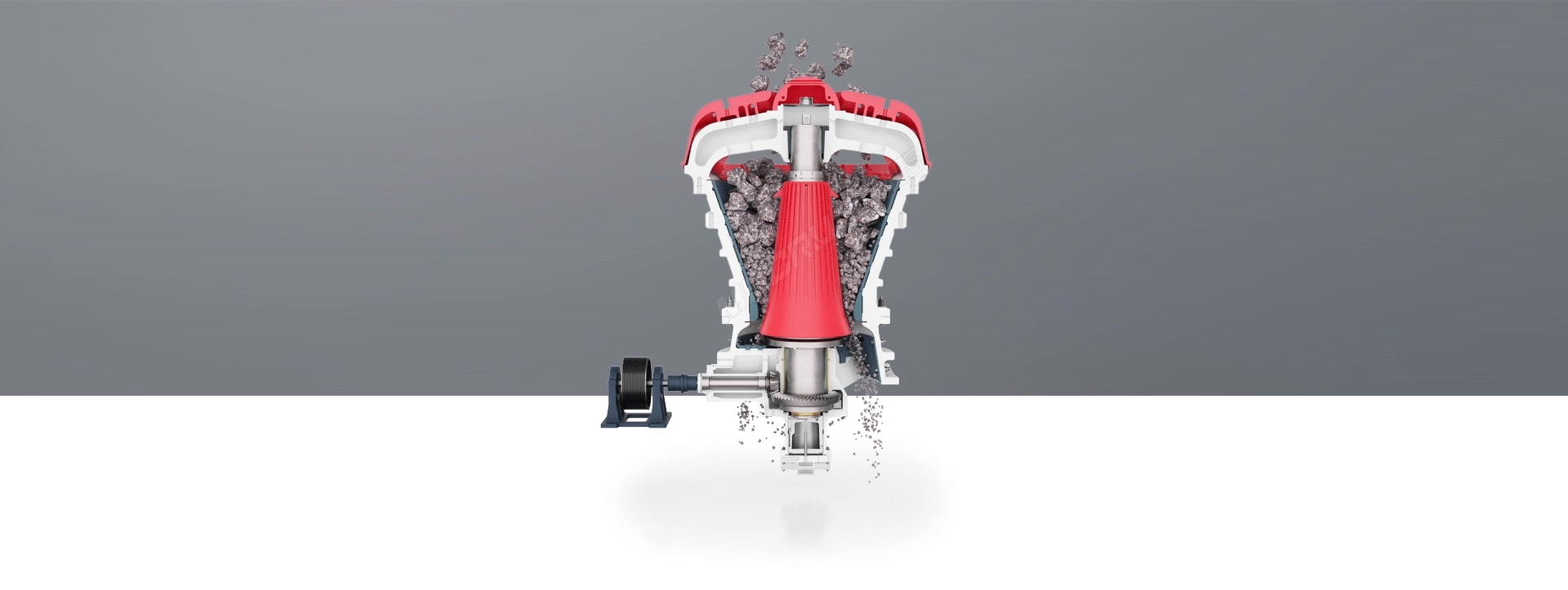

Work Principle

The gyratory crusher is a large crushing machine that utilizes the gyratory motion of the crushing cone in the cone cavity of the shell to produce extrusion, splitting and bending effects on the material, and to coarsely break various hardness ores or rocks. The upper end of the main shaft equipped with the crushing cone is supported in the bushing of the middle beam, and the lower end is placed in the eccentric hole of the bushing. When the sleeve rotates, the crushing cone makes an eccentric rotation movement around the center line of the machine. Its crushing action is continuous, so the working efficiency is higher than that of the jaw crusher.

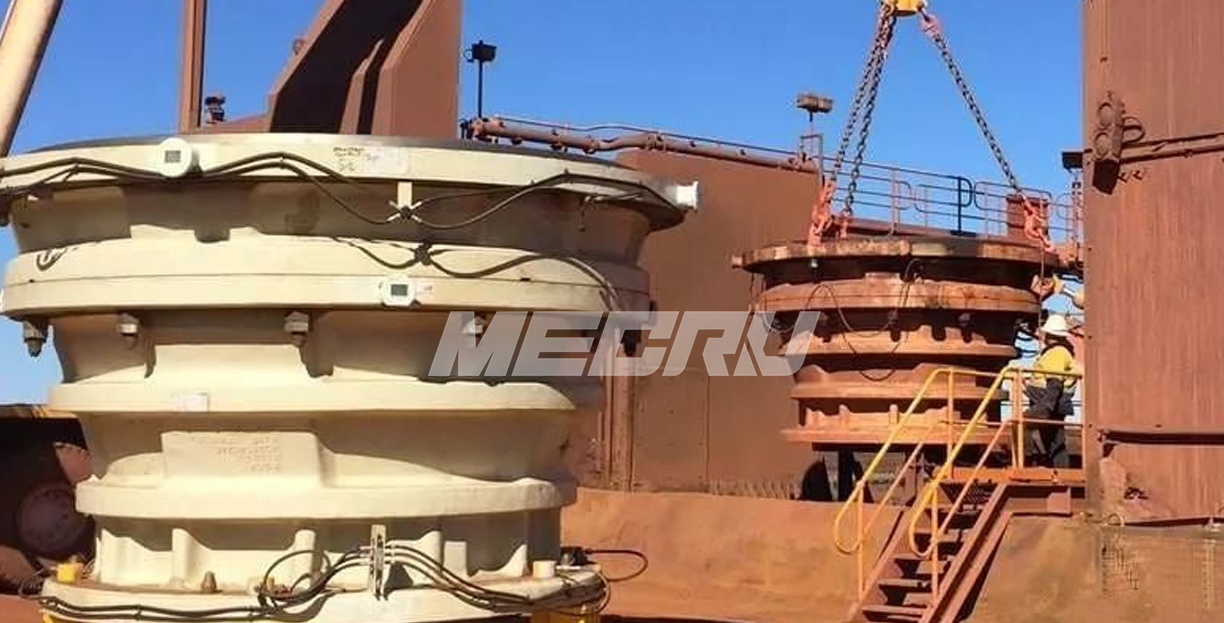

Customer Case
