High Frequency Vibrating Screen


Feeding size

15-48 t/h


Applicable materials: It is used for dry and wet screening, classification and dehydration of various materials in industries such as mineral processing, coal preparation, chemical industry, brick making, food, pharmacy, alkali making, fertilizer, paper making, etc.
high screen frequency
High Frequency Vibrating Screen

Product profile

The high frequency vibrating screen is composed of vibration exciter, slurry distributor, screen frame, frame, suspension spring and screen sieve.

Mouse drag product 360°rotation

Product Advantages

Technical Parameters

Note:Any change of technical data shall not be advised additionally.

Application Areas


High Frequency Vibrating Screen

High Frequency Vibrating Screen

Work Principle

The motor drives the main shaft of the exciter to rotate through the V-belt, and the screen box is vibrated due to the centrifugal inertia force of the unbalanced weight on the exciter. By changing the eccentric weight of the exciter, different amplitudes can be obtained. Different from the principle of ordinary screening equipment, the high frequency screen adopts high frequency. On the one hand, it destroys the surface tension of the slurry and the high-speed oscillation of the fine material on the screen surface, and accelerates the large density useful minerals and separation. It also increases the probability that materials smaller than the separated particle size come into contact with the sieve holes, which resulting in better separation conditions. So that the materials smaller than the separated particle size, especially the particles with a large specific gravity, and the ore slurry will pass through the sieve holes and become the under-sieve products.

Customer Case

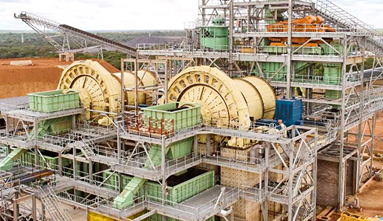

Australian iron ore beneficiation case
Australian iron ore beneficiation case

The Australian customer has been cooperating with Mecru Heavy Industry for a long time, and this time he wants to add a ...

Read more
Case of Pakistan Manganese Ore Magnetic Separation...

The customer's manganese ore is mainly produced by rhodochrosite and calcium rhodochrosite, followed by manganese c...

Read more
Case of Pakistan Manganese Ore Magnetic Separation Production Line
