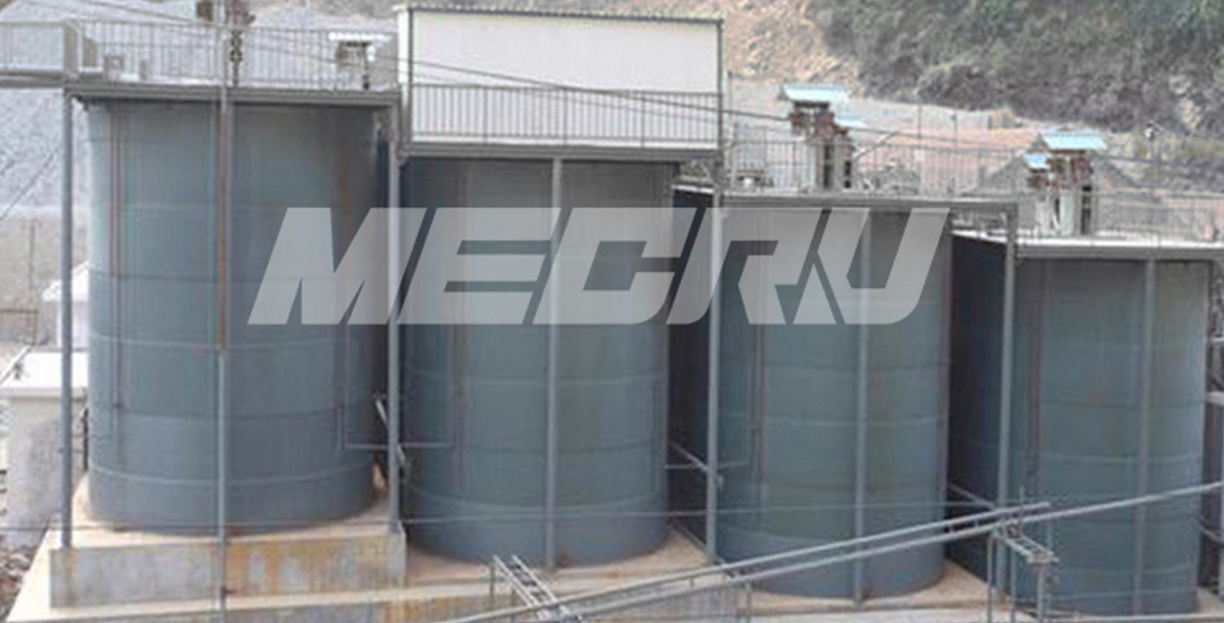

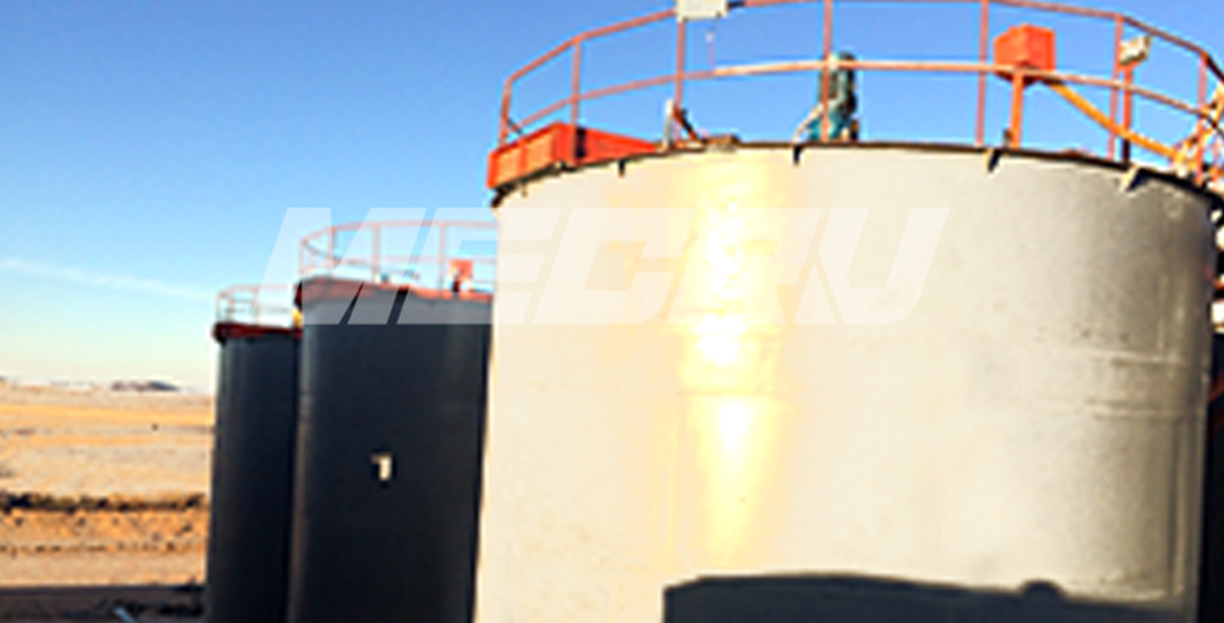

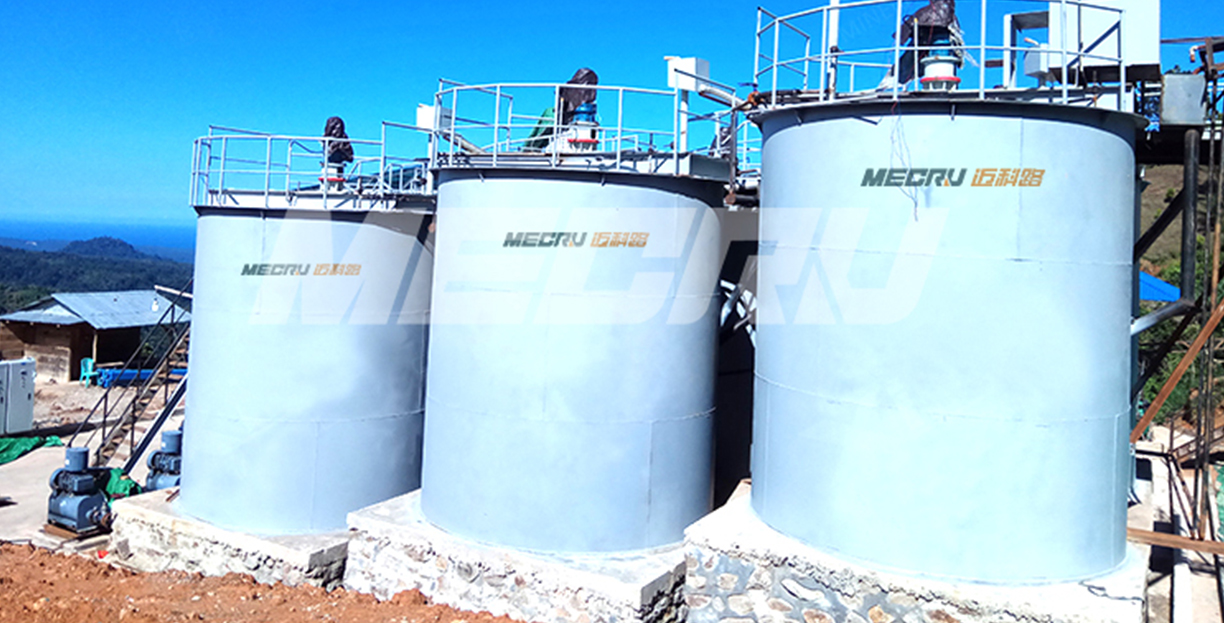

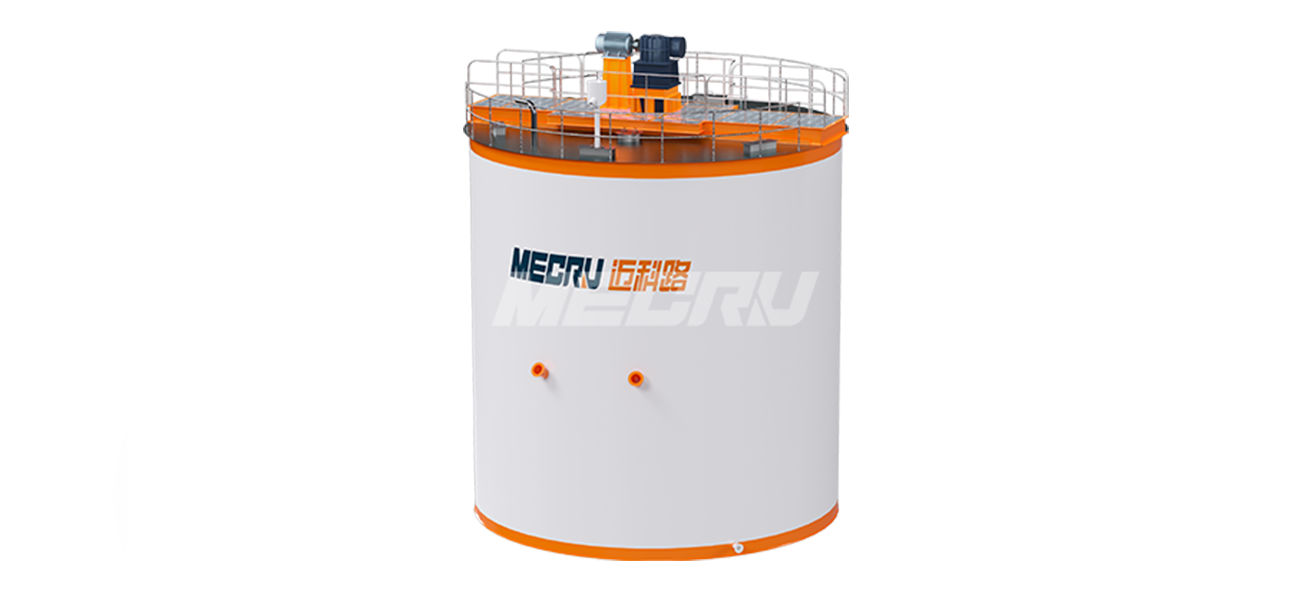

Agitating leaching tank

-200#80%

Material fineness

6—342m³

Effective volume

Applicable materials: Gold leaching, adsorption and other mixing operations with small specific gravity, low viscosity, slow settling velocity, ore particle size of -200 mesh accounts for more than 90%, and pulp concentration less than 45%.

Get a Quote

Product profile

Compared with ordinary agitation tanks, the Mecru double-impeller agitating leaching tank uses double-layer impellers, which can make the agitated pulp more uniform. In terms of energy consumption, it is more energy-saving. The impeller adopts The latest is the rubber-covering technology, which has a longer service life. In the aspect of air supply, it adopts a multi-directional air supply scheme, and the air is evenly inflated.

Product Advantages

The ore flow is stable, the slurry is evenly mixed, and the power consumption is low;

The air enters the tank through the transmission hollow shaft, and is stirred by the blades to disperse the air evenly;

Compact structure, easy maintenance; The hollow shaft is ventilated to the bottom, and the air enters the tank through it, and the air is evenly dispersed and the bubbles are small;

Two new impellers are adopted. The diameter of the impeller of the leaching tank is large, the speed is low, the power consumption of stirring is small, and the wear of charcoal can be reduced;

The stirring intensity is moderate, and the concentration and fineness distribution of the pulp in the tank are consistent, which can improve the leaching rate of cyanide and the adsorption rate of carbon; The impeller of the leaching mixing tank is lined with wear-resistant rubber, with low speed and long service life.

Technical Parameters

double-impeller agitating leaching tank main parameters
Model	Specification mm D×H	Effective volume m3	Impeller		Diameter		Reducer			Tankweight （kg)	Total weight （kg)
Model	Specification mm D×H	Effective volume m3	Roary speed rpm	Dia. mm	Feeding pipe mm	Discharging pipemm	Model	Speed ratio	Motorpowerkw	Tankweight （kg)	Total weight （kg)
JX2.0×2.5	2000×2500	6	52	909	2—Φ133×8	2—Φ133×8	XLD2.2-4-29	29	2.2		2144
JX2.5×3.15	2500×3150	13.14	52	935	2—Φ133×8	2—Φ133×8	XLD2.2-4-29	29	2.2	2242	3095
JX3.0×3.0	3000×3000	18	40.85	1130	2—Φ150	2—Φ150	XLD4-5-35	35	4	2802	4161
JX3×3.15	3000×3150	18.93	43	1130	2—Φ150	2—Φ150				3331	4323
JX3.15×3.55	3150×3550	24	43	1260	2—Φ150	2—Φ150				3391	4583
JX3.5×3.5	3500×3500	30	52	1310	2—Φ150	2—Φ150	XLD5.5-5-29	29	5.5	4286	5025
JX3.5×4.0	3500×4000	32.7	41	1310	2—Φ150	2—Φ150	XLD5.5-5-29	29	5.5	4631	5429
JX3.55×4.0	3550×4000	33.6	43	1310	2—Φ150	2—Φ150	XLD4-5-35	35	4	4860	5825
JX3.7×4.2	3700×4200	38.4	42	1310	2—Φ150	2—Φ150	XLD4-5-35	43	4	5058	6153
JX4.0×4.0	4000×4000	38	35	1750	2—Φ159×8	2—Φ159×8	XLD7.5-7-43	43	7.5	6056	7450
JX4.0×4.5	4000×4500	48	35	1750	2—Φ159×8	2—Φ159×8	XLD7.5-7-43	43	7.5	6106	7569
JX4.5×5.0	4500×5000	71.57	35	1750	2—Φ159×8	2—Φ159×8	XLD7.5-7-43	43	7.5	7506	10864
JX5.0×5.6	5000×5600	98	31	2046	2—Φ159×8	2—Φ159×8	XLD11-8-47	47	11	10483	14291
JX5.5×6.0	5500×6000	112	31	2100	2—Φ159×8	2—Φ159×8	XLD11-8-47	47	11	14209	18745
Φ6×6.5	6000×6500	170	24.9	2300	2—Φ168×8	2—Φ168×8	XLD18.5-9-35	31.5	18.5	16164	21006
Φ6.5×7	6500×7000	215	23	2400	2—Φ168×8	2—Φ168×8	XLD18.5-9-43	43	22	17190	25567
Φ7.0×7.5	7000×7500	245.4	21	2400	2—Φ168×8	2—Φ168×8	XLD22-10-47	47	22	22091	30486
JX7.5×8.0	7500×8000	268.6	21	2900	2—Φ168×8	2—Φ168×8	XLD22-10-47	47	22	26958	34365
JX8.0×8.5	8000×8500	342	16.4	3200	2—Φ219×8	2—Φ219×8	XLD22-10-47	47	30	33489	42468

Note：Any change of technical data shall not be advised additionally.

Work Principle

Under the action of dragging and stirring by the double impellers, the pulp flows from top to bottom in the center, diffuses through the surrounding damping plate, feeds air at the lower end of the shaft, mixes with the pulp and circulates upwards to form a uniform suspension mixture .

Customer Case

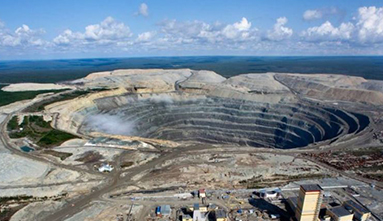

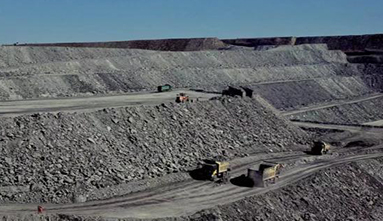

Australian iron ore beneficiation case

The Australian customer has been cooperating with Mecru Heavy Industry for a long time, and this time he wants to add a ...

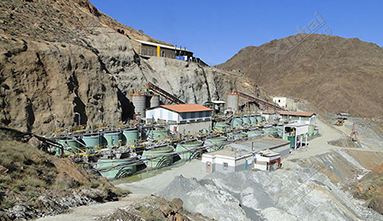

Case of Pakistan Manganese Ore Magnetic Separation...
