Tower Mill

Flexible

Feeding size

10-400T/h

Capacity

Applicable materials: Metal ore, calcium carbonate, barite, mica stone and other materials for processing
Economical and Energy-saving
Tower Mill

Product profile

Vertical spiral stirring mill, referred to as vertical mill or tower mill, is a commonly used grinding equip-ment that can effectively grind materials to the required particle size. Crushing and grinding are thebasic processes for material processing, so their role is very critical. Choosing the right equipment fordifferent materials has a very obvious impact on the finished product. Mecru vertical mill can processvarious materials such as metal ore, calcium carbonate, barite, mica, etc., and has a wide range of appli-cations.

Mouse drag product 360°rotation

Product Advantages

Technical Parameters

ModelMotor powerMill volumeRequired floor spaceHeightCapacity
TM-150150102.4×2.5913-16
TM-200200102.4×2.59.218-21
TM-250250132.7×2.89622 - 27
TM-300300203.1×3.210.127-33
TM-400400243.2×3.411.937-44
TM-500500323.5×3.812.147-56
TM-600600353.7×3.912.757-68
TM-750750393.9×4.11372-86
TM-850850464.2×4.513.582-98
TM-950950494.4×4.713.892-111
TM-11201120664.9×5.314.4109-131
TM-15001500875.6×5.915.2146-175
TM-225022501476.7×6.916.9219-263
TM-336033601566.7×6.918.9327-392

Note:Any change of technical data shall not be advised additionally.

Application Areas

Tower Mill

Tower Mill

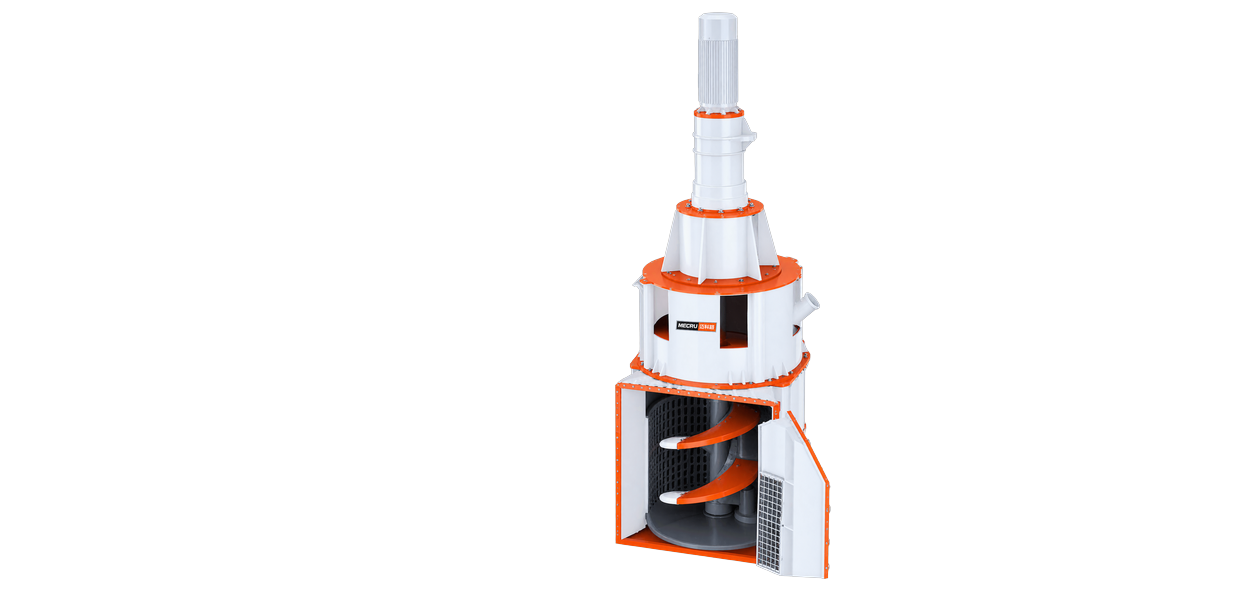

Work Principle

Tower mill is mainly composed of transmission system, tower body, spiral agitator, protective lining,etc.The working principle of the tower mill is that during the operation of the low-speed rotating stiringspiral, due to the effects of centrifugal force, gravity, and friction, the crushing medium and materialsachieve an orderly motion cycle and a basic macro-balance of forces. Within the spiral stirring It is a spiralupward that is less than the liting speed, and a spiral downward between the inner lining and the outeredge of the spiral. However, at the micro level, due to the unevenness of its force, dynamic speed differ-ences and force changes are formed, resultingin the material being strongly squeezed and ground, as wellas the force breaking, micro-shearing, chopping, etc. between the materials. effect. Materials with quallfied fineness are conveyed as they rise with the conveying medium and flow out freely from the upper partof the tower mill body after being internally classified.

Customer Case

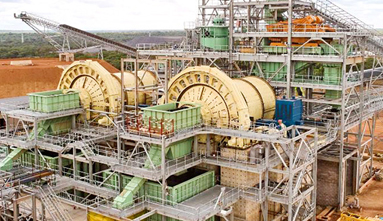

Australian iron ore beneficiation case
Australian iron ore beneficiation case

The Australian customer has been cooperating with Mecru Heavy Industry for a long time, and this time he wants to add a ...

Read more
Case of Pakistan Manganese Ore Magnetic Separation...

The customer's manganese ore is mainly produced by rhodochrosite and calcium rhodochrosite, followed by manganese c...

Read more
Case of Pakistan Manganese Ore Magnetic Separation Production Line
